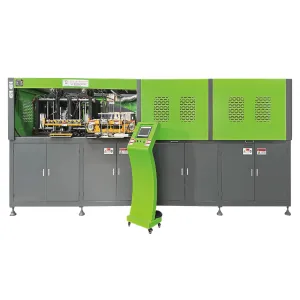

Fully Automatic Servo Blow Molding Machine

Features

Our machine with full servo electronic CAM drive, which can ensure that the machine will be much stable and fast in production.

1. Preform Split System: Preform Split by servo motor, shorten the conveying track, but  supply enough preforms completely.

2. Servo Shift System: the main chain adopts the way of servo drive bearing connection, which can ensure the long-term use of preform movement, with reduced impact, low noise, long life and other advantages.

3. Heating System: The ruby heating lamp can heat the preforms better so that the stretching more uniform and high transparency; The lamp with single side coated, shorten heating time, low energy consumption, and improve production, and each layer of the lamp can be adjusted the temperature separately, also easy to slope adjustment with up and down, front and back according to the different preforms.

4. Servo Clamping System: with high pressure pressurization clamping, no expansion phenomenon, and the clamping line is very good, easy to replace the mold because there have  positioning plate on the clamp plate, which can be replaced very fast.

5. Servo Stretch System: Parker, FESTO, SMC and other imported pneumatic components, blowing cycle time can be adjusted, equipped with low-pressure gas recovery system, each stretch rod can be adjusted separately with high flexibility.

6. Electronic System: Schneider,Sanrex,OMRON and other imported electronic control components, all Xinjie brand with sport PLC ,servo system and touch screen . We can update the machine by WIFI remote control and debugging , which can help customers solve various problems and processes. The touch screen can be converted into 6 languages,  perfect monitoring sensor Settings, automatic fault display function, automatic statistics of production and efficiency.

7. Water Cooling system: There is a water cooling channel under the heating box connected by copper tube, which can protect the neck cooling during the heating of the preform. The cooling system also connect to the mold and the bottom to keep the bottle wihtou deformation and improve the production .

Bottle Type

Parameters

1. Introduction

The Fully Automatic Servo Blow Molding Machine designed for beverage and food containers is an advanced solution for high-speed, high-precision PET bottle production. With the global increase in demand for durable, high-quality, and energy-efficient packaging, this machine provides manufacturers with a reliable tool for producing uniform bottles suitable for water, juices, sauces, edible oils, and other food products.

The integration of servo-driven technology ensures precise control over preform stretching and blowing, minimizing defects and ensuring consistent wall thickness. The fully automatic process streamlines production, reduces labor requirements, and maximizes efficiency in medium to large-scale manufacturing operations.

This guide delivers a comprehensive, SEO-friendly overview covering working principles, structural design, technical specifications, advantages, applications, operational guidelines, and maintenance practices, optimized for blogs, product pages, and industry directory pages.

2. Definition and Core Concept

The Fully Automatic Servo Blow Molding Machine is a stretch blow molding system that uses servo-driven mechanisms for precise and adjustable preform handling. It automates the production of PET bottles and containers with consistent quality, offering flexible operation for multiple container sizes and shapes.

Key Definitions

3. Working Principle

The machine uses a two-stage stretch blow molding process to produce high-quality beverage and food containers. The servo system ensures precise movement, reducing material stress and improving bottle consistency.

Production Workflow

1. Preform Feeding
   Preforms are automatically loaded into the feeding system and aligned for processing.

2. Infrared Heating
   Preforms are heated evenly to a specific temperature for optimal stretching.

3. Stretching Stage
   Servo-driven stretch rods elongate preforms vertically, ensuring uniform molecular orientation.

4. High-Pressure Blowing
   Compressed air inflates the preforms into molds, forming the container shape.

5. Cooling Stage
   The mold cools the container uniformly, preventing deformation.

6. Automatic Ejection
   Finished bottles are discharged efficiently for downstream packaging or labeling.

4. Machine Structure and Components

Core Components

5. Key Features and Advantages

5.1 High Precision with Servo Control

• Servo-driven stretching ensures consistent wall thickness

• Accurate bottle neck, thread, and base formation

• Reduces material stress and deformation

5.2 Fully Automatic Operation

• Automates feeding, heating, stretching, blowing, and cooling

• Reduces labor dependency

• Ensures consistent high-volume production

5.3 Versatile Container Production

• Supports multiple bottle sizes and shapes

• Suitable for beverages, sauces, edible oils, and condiments

• Flexible mold adjustment for small or large batch production

5.4 Energy Efficiency

• Optimized infrared heating reduces energy consumption

• Servo motors improve operational efficiency

• Air recovery systems minimize compressed air usage

5.5 Durable and Reliable Construction

• High-strength frame and components

• Resistant to wear under continuous operation

• Reduces downtime and maintenance costs

6. Technical Specifications (Reference Table)

7. Comparison: Servo vs Standard Blow Molding Machines

8. Applications Across Industries

8.1 Beverage Industry

• Mineral water bottles

• Juice bottles

• Soft drink and energy drink containers

8.2 Food Industry

• Edible oil bottles

• Sauce bottles

• Vinegar and liquid condiment bottles

8.3 Nutritional and Pharmaceutical

• Nutritional drink bottles

• Supplement containers

8.4 Household Chemical Products

• Cleaning solution containers

• Detergent bottles

9. Materials Used

Primary Material: PET

Other Compatible Materials

• PP (Polypropylene)

• PC (Polycarbonate)

10. Ensuring High-Quality Bottle Production

• Uniform Heating: Infrared heating ensures even preform temperature

• Servo Stretching: Precise molecular orientation improves durability

• Stable Air Pressure: Reduces defects such as thin walls or deformation

• High-Precision Mold Design: Ensures accurate neck, thread, and base quality

11. Energy Efficiency and Cost Optimization

Cost Benefits:

• Lower energy consumption per bottle

• Reduced material waste

• Higher ROI for high-volume production

12. Production Efficiency

• Multi-cavity molds enhance throughput

• Fast cycle times reduce production downtime

• Fully automated processes ensure consistency

Output Example by Cavity

13. Maintenance Guidelines

Daily Maintenance

• Inspect molds, heating lamps, and cooling lines

• Check compressed air system

Weekly Maintenance

• Lubricate moving components

• Inspect PLC and electrical systems

Annual Maintenance

• Replace worn components

• Calibrate sensors

• Inspect structural integrity for long-term reliability

14. Safety Features

• Emergency stop button

• Overload protection

• Automatic alarms for temperature, pressure, or malfunction

• Mold interlocks for operator safety

15. Industry Trends

• Servo-driven machines growing in high-precision beverage and food container production

• Integration with smart factory monitoring systems

• Increased emphasis on energy efficiency and sustainability

• Adoption of AI-assisted quality inspection systems

16. FAQ Section

Q1: What types of bottles can this machine produce?
Beverage bottles, edible oil containers, sauces, condiments, and supplement bottles.

Q2: Can it handle different bottle sizes?
Yes, the servo system allows flexible adjustments for multiple bottle volumes and shapes.

Q3: What is the output capacity?
Depending on cavity configuration, 3000–10,000 bottles per hour.

Q4: Is this machine energy-efficient?
Yes, servo drive and infrared heating optimize energy usage.

17. Conclusion

The Fully Automatic Servo Blow Molding Machine for Beverage and Food Containers is ideal for medium-to-large scale manufacturing, providing:

• High precision and consistent bottle quality

• Fully automated, high-speed operation

• Energy efficiency and reduced material waste

• Flexibility for multiple container sizes and shapes

It is particularly suitable for beverage, food, nutritional, and household chemical industries, offering durability, reliability, and excellent ROI.
