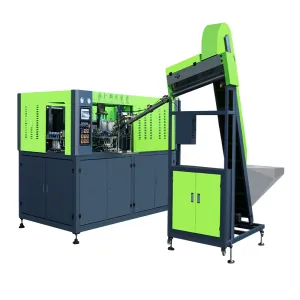

DR-A2 One-to-Four Fully Automatic Blow Molding Machine

The DR-A2 series fully automatic blow molding machine is our company's most stable two-step down-blowing fully automatic blow molding equipment. It ranges from one-outlet to six-cavity blow molding, capable of producing bottles up to 0.6 liters and 2 liters. It is suitable for blowing any shape of carbonated beverage bottles, mineral water bottles, cosmetic bottles, large-diameter bottles, high-temperature resistant bottles, and other packaging containers made from crystalline plastics such as PET and PP.

Features

1. Fully automatic human-machine interface, easy operation, stable machine operation, few malfunctions, and fast blowing speed.

2. Reasonable material selection, precision machining, and fine surface treatment for all machine parts.

3. Adopts a rotary continuous preform loading mechanism, which has high compatibility with preforms, provides stable and continuous loading, high speed, and high efficiency, overcoming the shortcomings of traditional intermittent preform loading by robotic arms.

4. Dense arrangement of preforms in the heating zone, fast and uniform heating, and energy saving.

5. 6. The chain for the heating zone's revolution drive uses an original imported chain from Tsubakimoto, Japan. This chain has precise pitch and is durable.

7. The chain for the heating zone's revolution drive is designed with a mold spring flexible tensioning mechanism, extending the chain's service life.

8. The PET Blow Molding Machine's bottle mouth is equipped with a cooling air blowing device, which can more effectively protect the preform's threaded ends.

9. The spacing mechanism is rationally designed, ensuring accurate and reliable spacing.

10. The preform (bottle) conveying mechanism uses original imported German Festo servo motors and electro-positioning systems, ensuring fast preform (bottle) conveying speed and high repeatability, overcoming the shortcomings of traditional pneumatic conveying mechanisms.

11. The cylinder-type mold-locking mechanism provides strong mold locking and stable and reliable operation.

12. The preform stretching uses a servo motor, offering fast stretching speed, accurate stretching stroke, and arbitrarily adjustable stretching stroke.

13. The blowing (exhausting) system uses original imported German Festo combination valves, offering fast blowing (exhausting) speed and long service life. Bottles can be directly fed into the filling line. The innovative conveyor mechanism ensures smooth and reliable transport.

14. Interoperability programs are installed between all operating mechanisms of the machine to protect it.

Parameters

1. Introduction

The DR-A2 One-to-Two Fully Automatic Blow Molding Machine with Advanced PLC Control System is a highly efficient and intelligent solution designed for the production of PET bottles across a wide range of industries. As modern manufacturing increasingly emphasizes automation, precision, and energy efficiency, this machine stands out as a reliable choice for small to medium-scale production with scalable output capability.

Equipped with an advanced PLC (Programmable Logic Controller) control system, the DR-A2 model ensures precise process control, consistent bottle quality, reduced downtime, and user-friendly operation. Its one-to-two cavity configuration provides flexibility for manufacturers to balance between high precision (single cavity) and higher productivity (dual cavity).

This article provides a complete, SEO-optimized, and structured overview of the DR-A2 blow molding machine, including working principles, technical specifications, advantages, applications, and optimization strategies.

2. Definition and Core Concept

The DR-A2 One-to-Two Fully Automatic Blow Molding Machine is a PET stretch blow molding system that converts plastic preforms into finished bottles through a fully automated sequence of heating, stretching, and high-pressure blowing.

Key Definitions

3. Working Principle

The DR-A2 machine operates using a two-step stretch blow molding process, which ensures high precision, consistency, and efficiency.

Step-by-Step Production Process

1. Preform Feeding
   Automatic feeding system loads preforms into the machine.

2. Infrared Heating
   Preforms are heated uniformly using high-efficiency infrared lamps.

3. Stretching Stage
   Stretch rods elongate preforms to improve material distribution.

4. High-Pressure Blowing
   Compressed air expands preforms into mold cavities.

5. Cooling Phase
   Cooling system stabilizes bottle shape.

6. Automatic Ejection
   Finished bottles are discharged automatically.

4. Advanced PLC Control System

The PLC control system is one of the most critical features of the DR-A2 machine.

Key Functions of PLC System

Benefits of PLC Integration

• Real-time control and monitoring

• Reduced human error

• Improved production efficiency

• Easy operation via touch screen interface

• Quick troubleshooting and maintenance

5. Machine Structure and Components

Core Components Overview

6. Key Features and Advantages

6.1 Advanced PLC Automation

• Intelligent control of all processes

• Real-time monitoring and diagnostics

• User-friendly touch screen interface

6.2 Flexible One-to-Two Cavity Design

• Single cavity for high precision

• Dual cavity for increased output

6.3 High Precision Bottle Forming

• Uniform wall thickness

• Accurate neck finish

• Reduced defect rate

6.4 Energy Efficiency

• Optimized heating system

• Reduced air consumption

• Lower power usage

6.5 Stable and Reliable Operation

• Consistent production performance

• Low maintenance requirements

• High machine uptime

7. Technical Specifications (Reference Table)

8. Comparison with Other Models

9. Applications Across Industries

9.1 Beverage Industry

• Water bottles

• Juice containers

• Carbonated drink bottles

9.2 Food Industry

• Edible oil bottles

• Sauce containers

9.3 Personal Care Industry

• Shampoo bottles

• Cosmetic containers

9.4 Household Chemical Industry

• Detergent bottles

• Cleaning product containers

10. Materials Used

Primary Material: PET

Other Materials

• PP (Polypropylene)

• PC (Polycarbonate)

11. Production Efficiency and Cost Benefits

Efficiency Factors

Cost Benefits

• Lower operational costs

• Reduced material waste

• Improved ROI

12. Energy Efficiency Technologies

• Infrared heating optimization

• Servo motor drive system

• Efficient air management

• Smart temperature control

13. Maintenance and Operation Guidelines

Daily Maintenance

• Check air pressure

• Clean heating lamps

• Inspect molds

Weekly Maintenance

• Lubricate components

• Check electrical systems

Annual Maintenance

• Replace worn parts

• Calibrate PLC system

14. Safety Features

• Emergency stop system

• Overload protection

• Automatic alarms

• Safety interlocks

15. Industry Trends

• Smart manufacturing integration

• AI-based defect detection

• Energy-efficient equipment

• Sustainable packaging

16. FAQ Section

Q1: What is the advantage of PLC control?

It provides precise automation, improves efficiency, and reduces errors.

Q2: What is the output capacity?

Approximately 1200–3000 bottles per hour.

Q3: What industries use this machine?

Beverage, food, personal care, and chemical industries.

Q4: Is it energy efficient?

Yes, it uses optimized heating and air systems to reduce energy consumption.

17. Conclusion

The DR-A2 One-to-Two Fully Automatic Blow Molding Machine with Advanced PLC Control System is a versatile and efficient solution for modern bottle manufacturing. With its combination of:

• Advanced PLC automation

• Flexible cavity configuration

• High precision forming

• Energy-efficient operation
