The global demand for high-quality plastic bottles continues to grow across industries such as beverages, pharmaceuticals, cosmetics, food, and chemicals. At the center of this large-scale manufacturing ecosystem lies a critical component: the advanced blow molding mold.
An advanced blow molding mold for efficient plastic bottle production is more than just a shaping tool—it is a highly engineered solution designed to optimize production efficiency, bottle consistency, material usage, and energy consumption.
With the evolution of PET bottle production technologies, manufacturers increasingly rely on precision-engineered molds, optimized cooling systems, and multi-cavity designs to achieve high-speed, cost-effective, and sustainable manufacturing.
This comprehensive guide provides an in-depth, SEO-optimized overview of advanced blow molding molds, covering definitions, working principles, materials, types, features, advantages, applications, design considerations, specifications, maintenance strategies, and future trends.
An advanced blow molding mold is a high-precision industrial tool used in the blow molding process to form plastic containers by expanding heated plastic into a mold cavity using high-pressure air.
An advanced blow molding mold refers to:
A precision CNC-machined mold
Designed for high efficiency and long-term production
Equipped with optimized cooling systems and surface treatments
Suitable for custom bottle designs and high-volume manufacturing
Shape plastic preforms into bottles
Control wall thickness distribution
Provide surface finish and structural integrity
Enable high-speed production cycles
advanced blow molding mold
plastic bottle production mold
PET bottle mold high efficiency
industrial blow mold system
custom bottle mold design
The advanced blow molding mold works as part of a coordinated system in modern manufacturing lines.
Preform Heating
PET preforms are heated evenly using infrared heaters
Mold Closing
The mold closes around the softened preform
Stretching Process
A stretch rod elongates the preform to improve strength
High Pressure Air Injection
Compressed air expands the preform to match the mold cavity
Cooling Phase
Cooling channels remove heat rapidly
Ejection
The finished bottle is released
| Mold Type | Description | Application |
|---|---|---|
| Injection Stretch Blow Mold | Used for PET bottle production | Beverage, water bottles |
| Extrusion Blow Mold | Continuous extrusion process | Large containers |

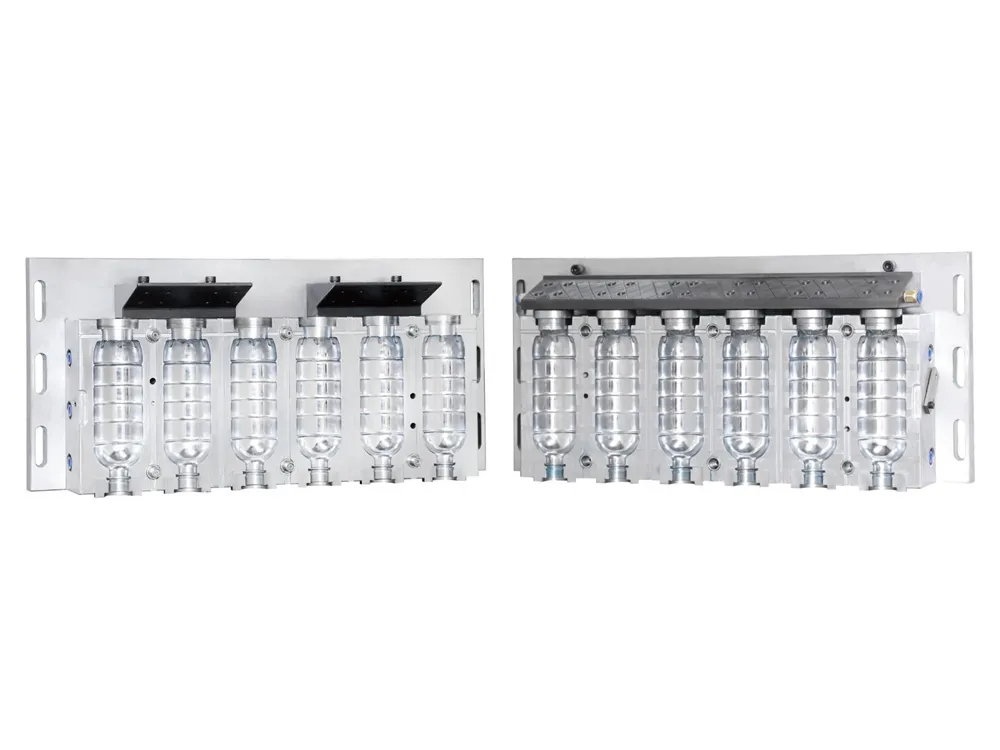

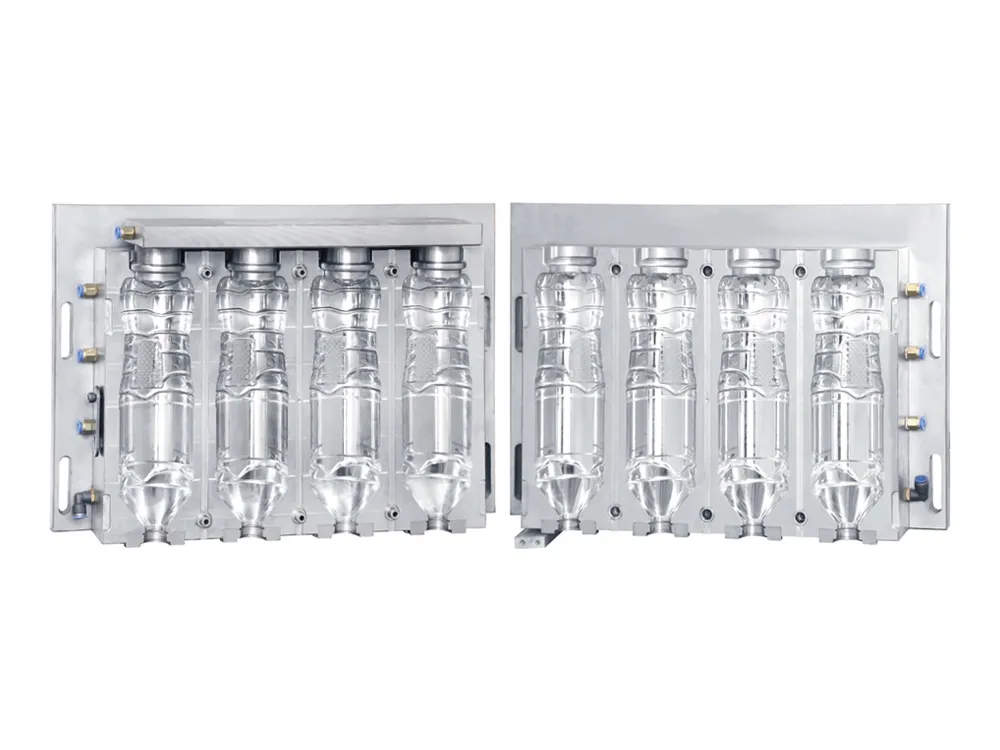

| Multi-Cavity Mold | Multiple outputs per cycle | High-volume production |
| Stack Mold | Multiple layers for high efficiency | Mass production lines |

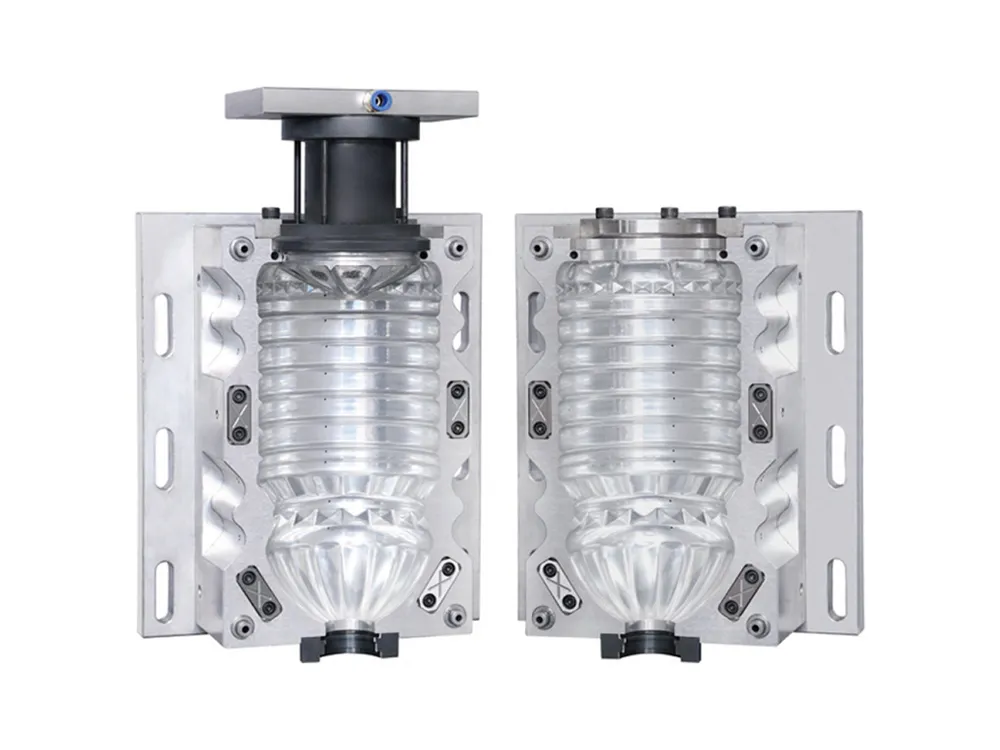

| Custom Mold | Tailored for unique designs | Branding-focused packaging |
Material selection is essential for achieving durability and efficiency.
| Material | Characteristics | Advantages |
|---|---|---|
| Aluminum | Lightweight, excellent heat transfer | Fast cooling cycles |
| P20 Steel | Pre-hardened tool steel | Cost-effective and durable |
| H13 Steel | High hardness and wear resistance | Long service life |
| Beryllium Copper | Superior thermal conductivity | Reduced cycle time |
CNC machining ensures tight tolerances
Consistent product quality
Advanced cooling channels
Faster heat dissipation
Increased production output
Reduced per-unit cost
Polishing for transparency
Coating for wear resistance
Easy maintenance and replacement
Shorter cycle times
Increased throughput
Uniform thickness
Smooth surface finish
Reduced material waste
Lower energy consumption
Durable materials
Reduced maintenance frequency
Unique bottle shapes
Branding flexibility
| Industry | Application | Benefits |
|---|---|---|
| Beverage | Water, juice, soft drinks | High-speed output |
| Pharmaceutical | Medicine bottles | Clean and precise |
| Cosmetics | Personal care packaging | Attractive design |
| Food | Oil, sauces | Safe and durable |
| Chemical | Industrial containers | Strong and resistant |
| Parameter | Typical Range | Description |
|---|---|---|
| Cavities | 1–24 | Production capacity |
| Cycle Time | 5–15 seconds | Efficiency indicator |
| Mold Material | Aluminum / Steel | Durability |
| Cooling Type | Water cooling | Heat removal |
| Surface Finish | Mirror polish | Transparency |
| Mold Life | Up to 5 million cycles | Longevity |
Avoid sharp corners
Ensure uniform stress distribution
Balanced cooling
Reduced cycle time
Prevent trapped air
Improve molding quality
Use simulation tools
Optimize performance
Advanced blow molding molds operate alongside:
High pressure air compressors
Air dryers and filters
Cooling systems (chillers)
Conveyor systems
Clean mold surfaces
Inspect for damage
Check cooling channels
Lubricate components
Inspect alignment
Check sealing surfaces
Re-polish cavities
Replace worn parts
| Issue | Cause | Solution |
|---|---|---|
| Uneven Thickness | Improper stretching | Adjust process |
| Surface Defects | Contamination | Clean mold |
| Slow Production | Cooling inefficiency | Improve cooling |
| Mold Wear | Low-quality material | Upgrade materials |
Sensors for real-time monitoring
Improved cooling and reduced consumption
Fully automated production lines
Eco-friendly mold materials
An advanced blow molding mold for efficient plastic bottle production is a vital component in modern manufacturing. It directly influences product quality, production speed, and operational efficiency.
By focusing on precision design, optimized cooling systems, durable materials, and proper maintenance, manufacturers can achieve high-performance production, reduced costs, and long-term reliability.
Investing in advanced blow molding mold technology ensures a competitive advantage in the rapidly evolving plastic packaging industry.
